DIN 981
Walzlagermuttern
Material: Stahl
RoHS: konform
Oberfläche: blank
DIN 981 WalzlagermutternDIN 981 Walzlagermuttern
DIN 981 Walzlagermuttern
DIN 981 Walzlagermuttern

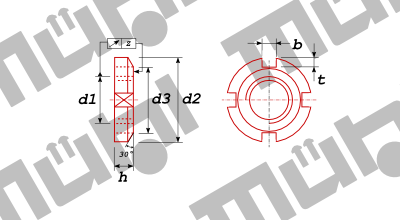

technische Details, Abmessungen in [mm]
KZ d2 d3 h b t
KM 0 18 13,5 4 3 2
KM 1 22 17 4 3 2
KM 2 25 21 5 4 2
KM 3 28 24 5 4 2
KM 4 32 26 6 4 2
KM 5 38 32 7 5 2
KM 6 45 38 7 5 2
KM 7 52 44 8 5 2
KM 8 58 50 9 6 2,5
KM 9 65 56 10 6 2,5
KM 10 70 61 11 6 2,5
KM 11 75 67 11 7 3
KM 12 80 73 11 7 3
KM 13 85 79 12 7 3
KM 14 92 85 12 8 3,5
KM 15 98 90 13 8 3,5
KM 16 105 95 15 8 3,5
KM 17 110 102 16 8 3,5
KM 18 120 108 16 10 4
KM 19 125 113 17 10 4
d1
M 10 x 0,75 50
M 12 x 1 50
M 15 x 1 50
M 17 x 1 50
M 20 x 1 50
M 25 x 1,5 50
M 30 x 1,5 50
M 35 x 1,5 50
M 40 x 1,5 50
M 45 x 1,5 50
M 50 x 1,5 25
M 55 x 2 25
M 60 x 2 25
M 65 x 2 25
M 70 x 2 20
M 75 x 2 20
M 80 x 2 10
M 85 x 2 10
M 90 x 2 10
M 95 x 2 10
