DIN 6331
Sechskantmutter mit Bund
Material: Stahl Güte 10 HV 30
RoHS & REACH: konform
Oberfläche: schwarz
DIN 6331 Sechskantmutter mit BundDIN 6331 Sechskantmutter mit Bund
DIN 6331 Sechskantmutter mit Bund
DIN 6331 Sechskantmutter mit Bund

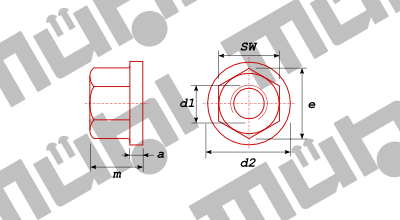

technische Details, Abmessungen in [mm]
SW e m a d2
10 11,05 9 3 14
13 14,38 12 3,5 18
16 17,8 15 4 22
18 20,03 18 4 25
22 24,49 21 4,5 28
24 26,75 24 5 31
27 29,56 27 5 34
30 32,95 30 6 37
32 35,03 33 6 40
36 39,55 36 6 45
46 50,85 45 8 58
55 60,79 54 10 68
d1
M 6 50
M 8 50
M 10 50
M 12 25
M 14 10
M 16 10
M 18 10
M 20 10
M 22 10
M 24 10
M 30 5
M 36 1
