Werksnorm 2276 - MS

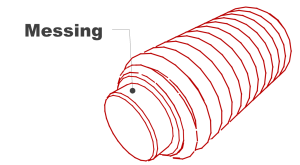

Druckschraube mit Messing-Bolzen
Material: Schraube: Stahl, Bolzen: Messing
RoHS: konform
Oberfläche: Schraube: brüniert
Werksnorm 2276 - MS Druckschraube mit Messing-BolzenWerksnorm 2276 - MS Druckschraube mit Messing-Bolzen
Werksnorm 2276 - MS Druckschraube mit Messing-Bolzen
Werksnorm 2276 - MS Druckschraube mit Messing-Bolzen

technische Details, Abmessungen in [mm]
d2 l2 SW
2 0,5 2
2 0,5 2
2 0,5 2
2 0,5 2
3 0,5 2,5
3 0,5 2,5
3 0,5 2,5
3 0,5 2,5
3 0,5 2,5
3,5 1 3
3,5 1 3
3,5 1 3
3,5 1 3
3,5 1 3
5 1,5 4
5 1,5 4
5 1,5 4
5 1,5 4
5 1,5 4
6,5 2 5
6,5 2 5
6,5 2 5
6,5 2 5
6,5 2 5
8 2 6
8 2 6
8 2 6
8 2 6
8 2 6
d1 x l1
M 4 x 6,5 10
M 4 x 10,5 10
M 4 x 12,5 10
M 4 x 16,5 10
M 5 x 8,5 10
M 5 x 10,5 10
M 5 x 12,5 10
M 5 x 16,5 10
M 5 x 20,5 10
M 6 x 11 10
M 6 x 13 10
M 6 x 17 10
M 6 x 21 10
M 6 x 26 10
M 8 x 13,5 10
M 8 x 17,5 10
M 8 x 21,5 10
M 8 x 26,5 10
M 8 x 33,5 10
M 10 x 18 10
M 10 x 22 10
M 10 x 27 10
M 10 x 35 10
M 10 x 42 10
M 12 x 22 10
M 12 x 27 10
M 12 x 34 10
M 12 x 42 10
M 12 x 52 10
