ISO 7380-2 (DLF) |

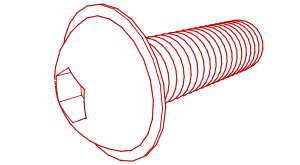

Linsen-Flanschkopf-Schraube |
Material: Stahl Güte 10.9 |
RoHS & REACH: konform |
Oberfläche: verzinkt (Chrom 6 frei)   |
 |  |
| |
 |

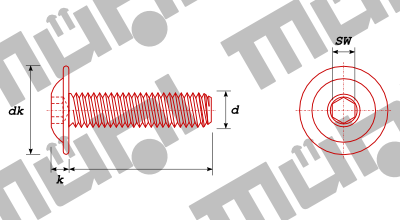

technische Details, Abmessungen in [mm]
| d | M 3 | M 4 | M 5 | M 6 | M 8 | M 10 |
| dk | 7,2 | 9,4 | 11,8 | 13,9 | 17,8 | 22 |
| k | 1,7 | 2,2 | 2,85 | 3,35 | 4,45 | 5,51 |
| SW | 2 | 2,5 | 3 | 4 | 5 | 6 |
Stück je Verpackungseinheit
| l | d | M 3 | M 4 | M 5 | M 6 | M 8 | M 10 |
| 6 | 500 | |||||
| 8 | 500 | 500 | 500 | 500 | ||
| 10 | 500 | 500 | 500 | 500 | ||
| 12 | 500 | 500 | 500 | 500 | 200 | |
| 16 | 500 | 500 | 500 | 200 | ||
| 20 | 500 | 500 | 500 | 200 | 100 | |
| 25 | 500 | 200 | 500 | 200 | 100 | |
| 30 | 500 | 200 | 500 | 200 | 100 | |
| 35 | 200 | 500 | 200 | 100 | ||
| 40 | 500 | 200 | ||||
| 45 | 500 | 200 | ||||
| 50 | 500 | 200 | ||||
| l | d | M 3 | M 4 | M 5 | M 6 | M 8 | M 10 |
