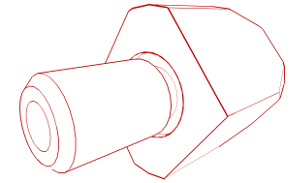

DIN 6321-C |
Aufnahmebolzen Form C mit Zentrierbohrung |
Material: Stahl geh. HRc 53+6 |
RoHS & REACH: konform |
Oberfläche: blank  |
 |  |
| |
 |

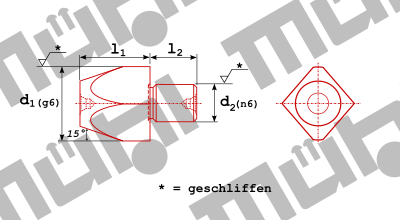

technische Details, Abmessungen in [mm]
| d1 (g6) | 6 | 8 | 10 | 12 | 16 |
| d1 max. | 5,996 | 7,995 | 9,995 | 11,994 | 15,994 |
| d1 min. | 5,988 | 7,986 | 9,986 | 11,983 | 15,983 |
| d2 (n6) | 4 | 6 | 6 | 6 | 8 |
| d2 max. | 4,016 | 6,016 | 6,016 | 6,016 | 8,019 |
| d2 min. | 4,008 | 6,008 | 6,008 | 6,008 | 8,010 |
| l2 | 6 | 9 | 9 | 9 | 12 |
Stück je Verpackungseinheit
| l1 | d1 | 6 | 8 | 10 | 12 | 16 |
| 7 | 2 | ||||
| 10 | 2 | 1 | 1 | ||
| 12 | 2 | ||||
| 13 | 1 | ||||
| 16 | (2) | ||||
| 18 | (1) | (1) | |||
| 22 | (1) | ||||
| l1 | d1 | 6 | 8 | 10 | 12 | 16 |
