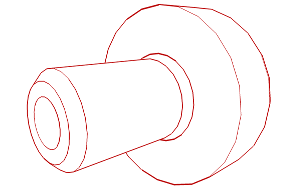

DIN 6321-A |
Auflagebolzen Form A |
Material: Stahl geh. HRc 53+6 |
RoHS & REACH: konform |
Oberfläche: blank  |
 |  |
| |
 |

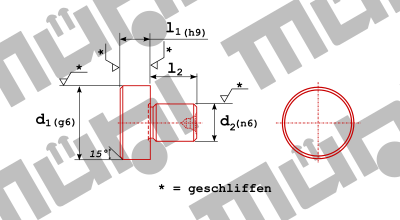

technische Details, Abmessungen in [mm]
| d1 (g6) | 6 | 10 | 16 | 25 |
| d1 max. | 5,996 | 9,995 | 15,994 | 24,993 |
| d1 min. | 5,988 | 9,986 | 15,983 | 24,980 |
| d2 (n6) | 4 | 6 | 8 | 12 |
| d2 max. | 4,016 | 6,016 | 8,019 | 12,023 |
| d2 min. | 4,008 | 6,008 | 8,010 | 12,012 |
| l2 | 6 | 9 | 12 | 18 |
| l1 (h9) | 5 | 6 | 8 | 10 |
| l1 max. | 5,000 | 6,000 | 8,000 | 10,000 |
| l1 min. | 4,970 | 5,970 | 7,964 | 9,964 |
Stück je Verpackungseinheit
| l1 | d1 | 6 | 10 | 16 | 25 |
| 5 | 2 | |||
| 6 | 2 | |||
| 8 | 1 | |||
| 10 | 1 | |||
| l1 | d1 | 6 | 10 | 16 | 25 |
